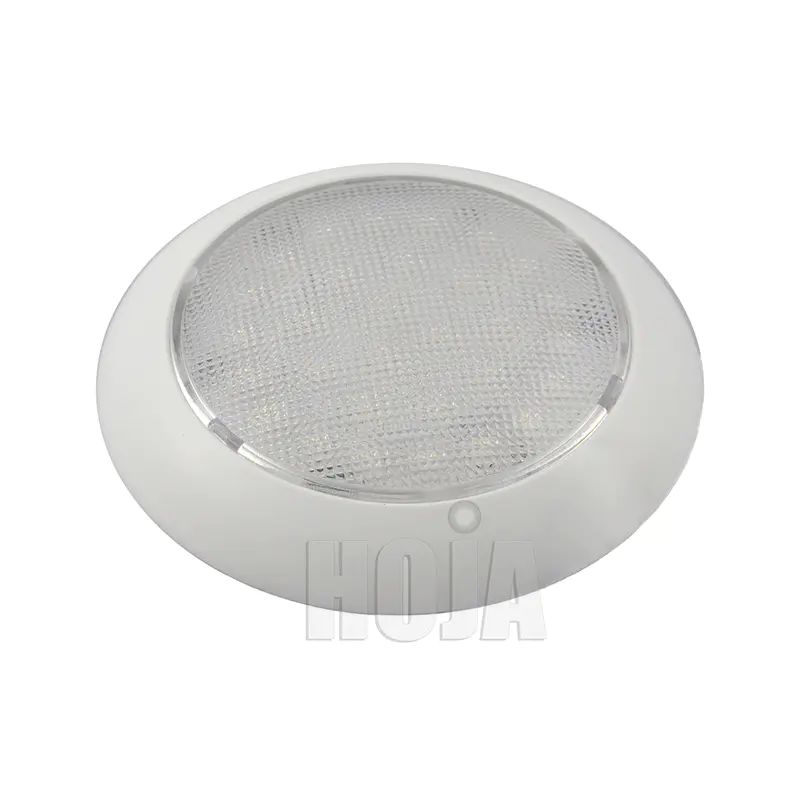

• Low profile stylish LED dome light; ideal for interior use in Boat, RV and other applications
• White plastic housing added with UV inhibitor to resist color fading, rocker switch; optional housing also available in Black or Silver color by special order
• Clear PC Lens featured with StarView® lens pattern is uniquely designed to vastly distribute the lighting illuminated from white LEDs to a wide beam angle of no less than 120°
• Concealed fastening holes, install easily
• Available in "No Switch" model
• Circuit board coated with conformal coating to resist moisture, corrosion and vibration
• Lighting color by LEDs available in single Natural Warm White, as well as Nav. version (red night vision) of White/Red LED configuration; optional Cool White color available by special order
• Color Temperature: Natural White=4,000~4,500K, Cool White=7,000~8,000K
• SMD LEDs or super flux (P4) type LEDs
• Rated for 12V, tested to 13.8V
• Also available in 24V version by special order only
Part No. |
Switch |
Input Voltage |
Lighting Color |
LED Count |
LED Type |
CCT. |
Luminous Flux |
Current Draw (A) at 13.8V |
458030W |
w/Switch |
12V |
Natural White |
30 |
P4 |
~4,200K |
150 lm |
0.18 A |
458130W |
w/Switch |
12V |
Natural White |
30 |
SMD |
~4,200K |
180 lm |
0.20 A |
458221W |
w/Switch |
12V |
Natural White/Red |
21W/9R |
P4 |
NW/Red |
105/45 lm |
0.14/0.15 A |
458321W |
w/Switch |
12V |
Natural White/Red |
21W/9R |
SMD |
NW/Red |
126/54 lm |
0.14/0.15 A |
459030W |
w/o Switch |
12V |
Natural White |
30 |
P4 |
~4,200K |
150 lm |
0.18 A |
459130W |
w/o Switch |
12V |
Natural White |
30 |
SMD |
~4,200K |
180 lm |
0.20 A |
459221W |
w/o Switch |
12V |
Natural White/Red |
21W/9R |
P4 |
NW/Red |
105/45 lm |
0.14/0.15 A |
459321W |
w/o Switch |
12V |
Natural White/Red |
21W/9R |
SMD |
NW/Red |
126/54 lm |
0.14/0.15 A |
