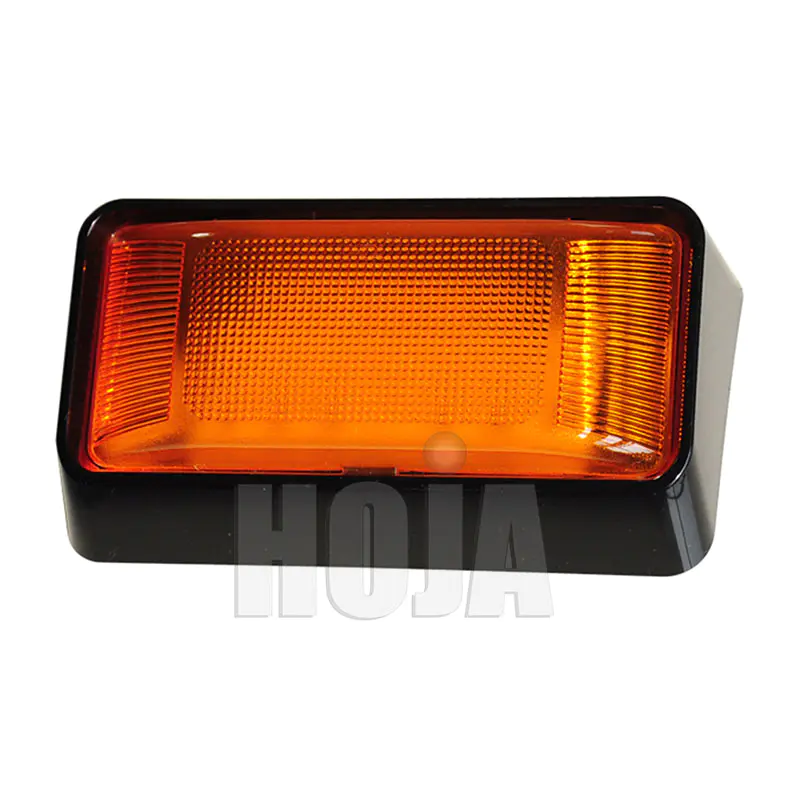

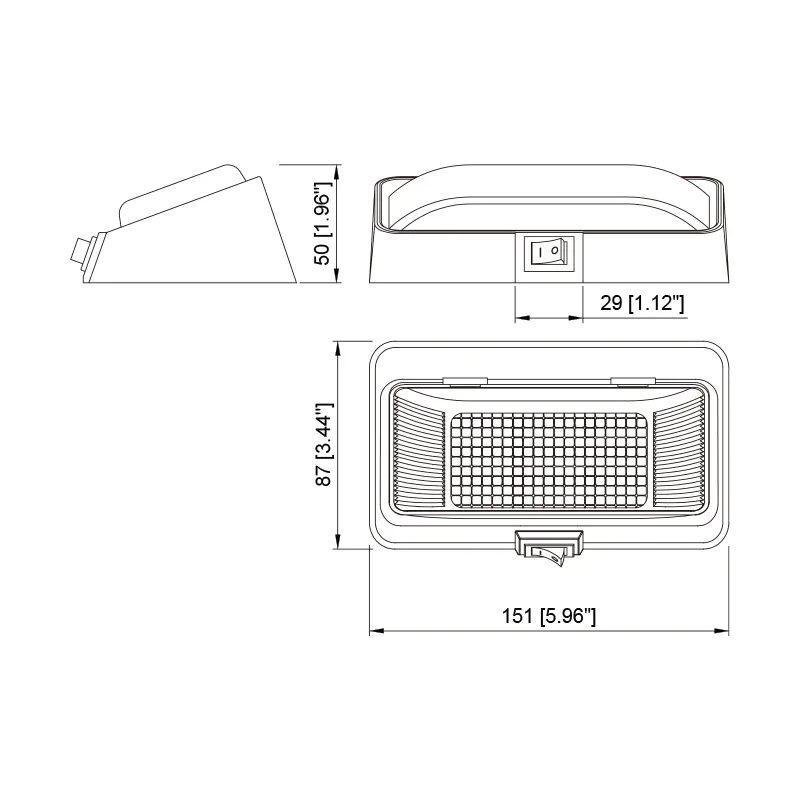

• LED version porch light features foot-print mount holes, ideal for retro-fit or replacement of the conventional porch lights on RVs
• With switch or non switch versions available, clear lens or amber lens assembled with white or black bases
• SMD5050 LEDs of up to date technology, super bright and long life span, natural white
• Circuit board completely sealed by soft epoxy to resist weather and vibration, IP64 rating
• Rated for 12V, tested to 13.8V
• Also available in 24V version by special order
Part No. |
Descriptions |
Input Voltage |
LED Count |
Lighting Color |
CCT |
Current Draw (A) at 13.8V |
Luminous Flux |
563018W |
White Base/Clear Lens, No Switch |
12V |
18 |
N. White |
~4,200K |
0.36 A |
220 lm |
563118W |
Black Base/Clear Lens, No Switch |
12V |
18 |
N. White |
~4,200K |
0.36 A |
220 lm |
563218A |
Balck Base/Amber Lens, No Switch |
12V |
18 |
Amber |
|
0.36 A |
|
564018W |
White Base/Clear Lens, W/ Switch |
12V |
18 |
N. White |
~4,200K |
0.36 A |
220 lm |
564118W |
Black Base/Clear Lens, W/ Switch |
12V |
18 |
N. White |
~4,200K |
0.36 A |
220 lm |
564218A |
Balck Base/Amber Lens, W/ Switch |
12V |
18 |
Amber |
|
0.36 A |
|
