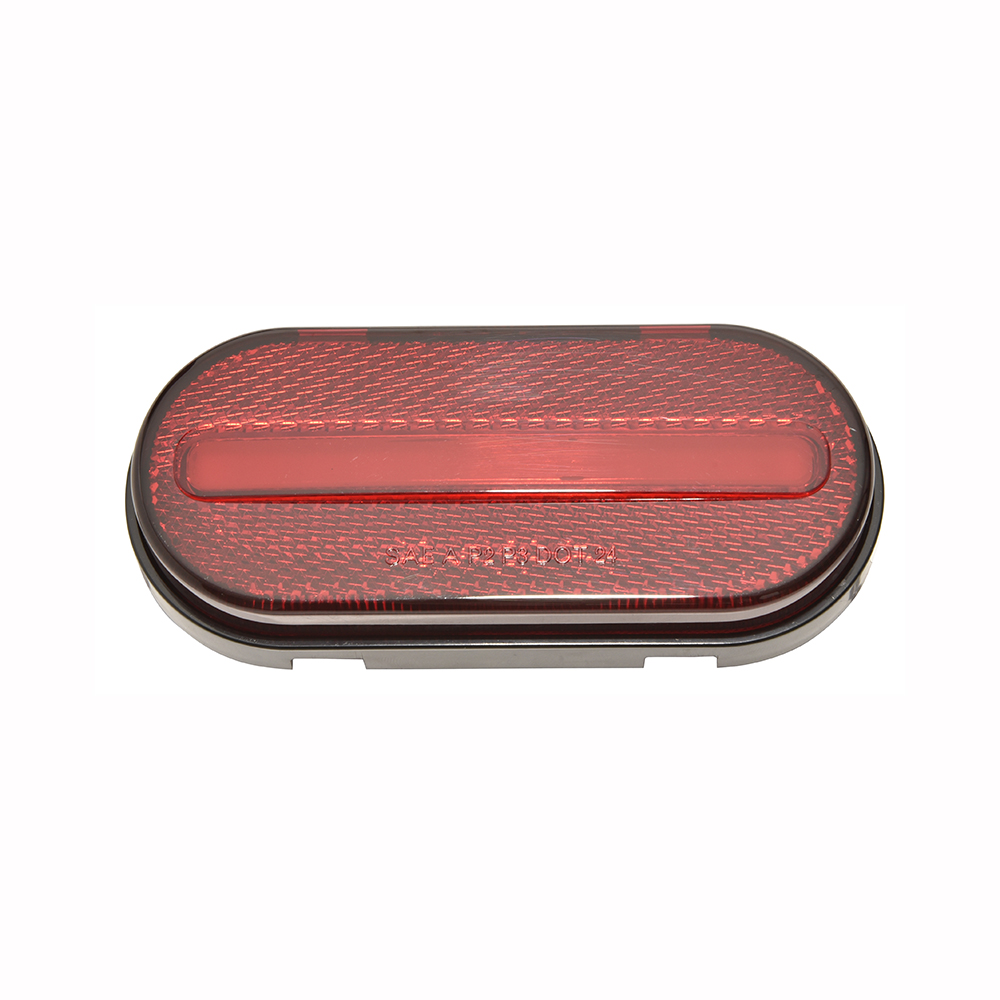

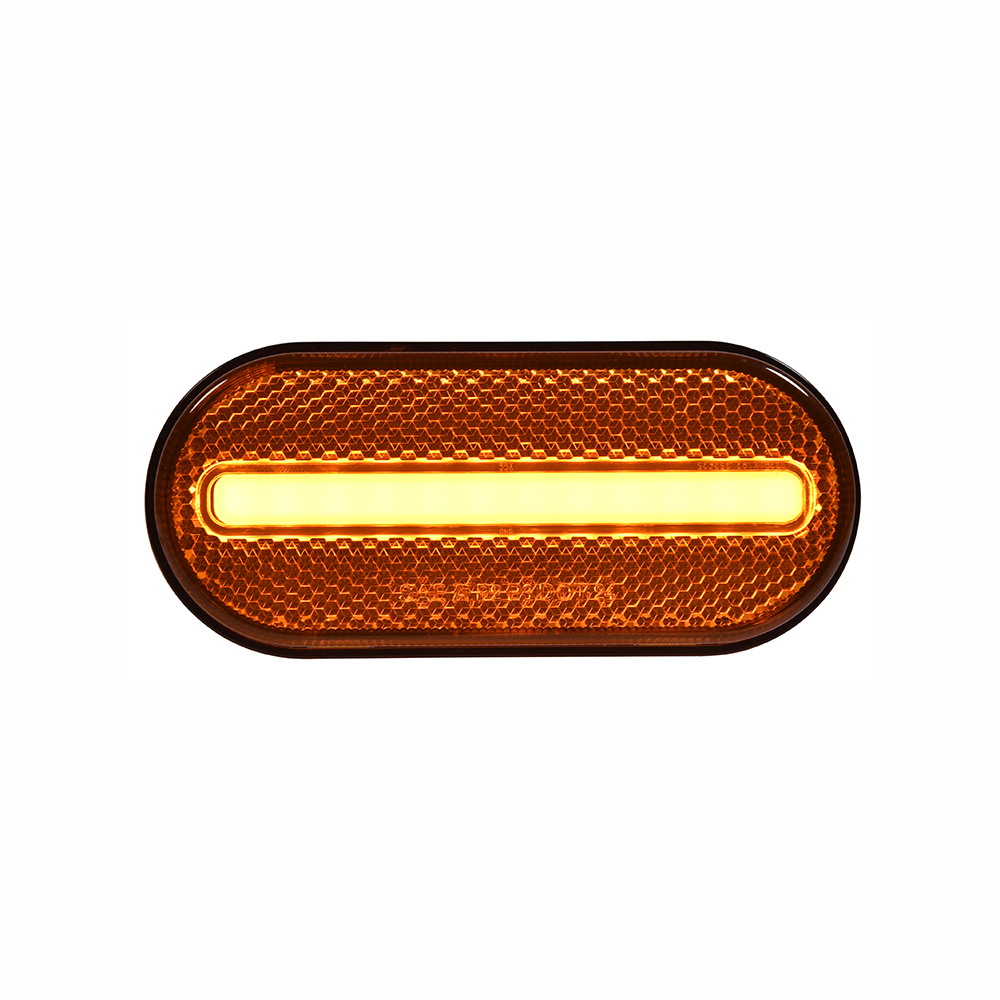

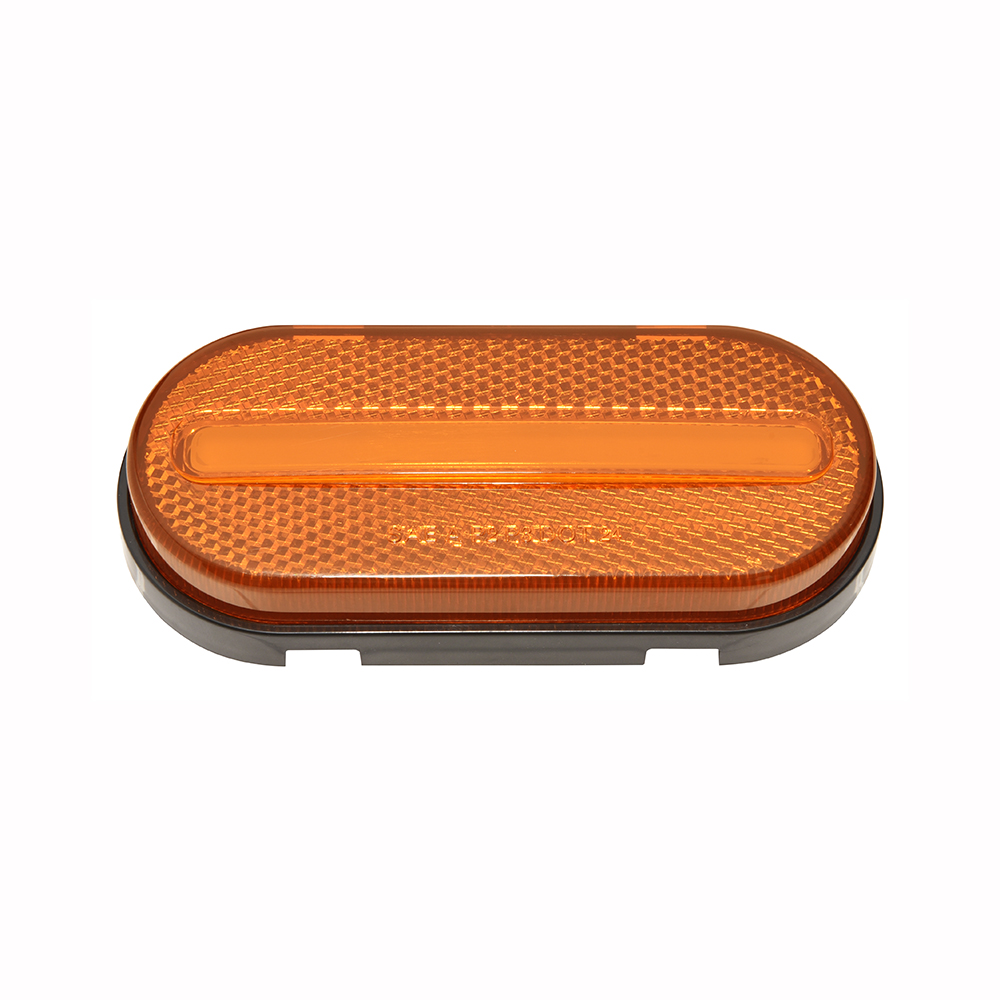

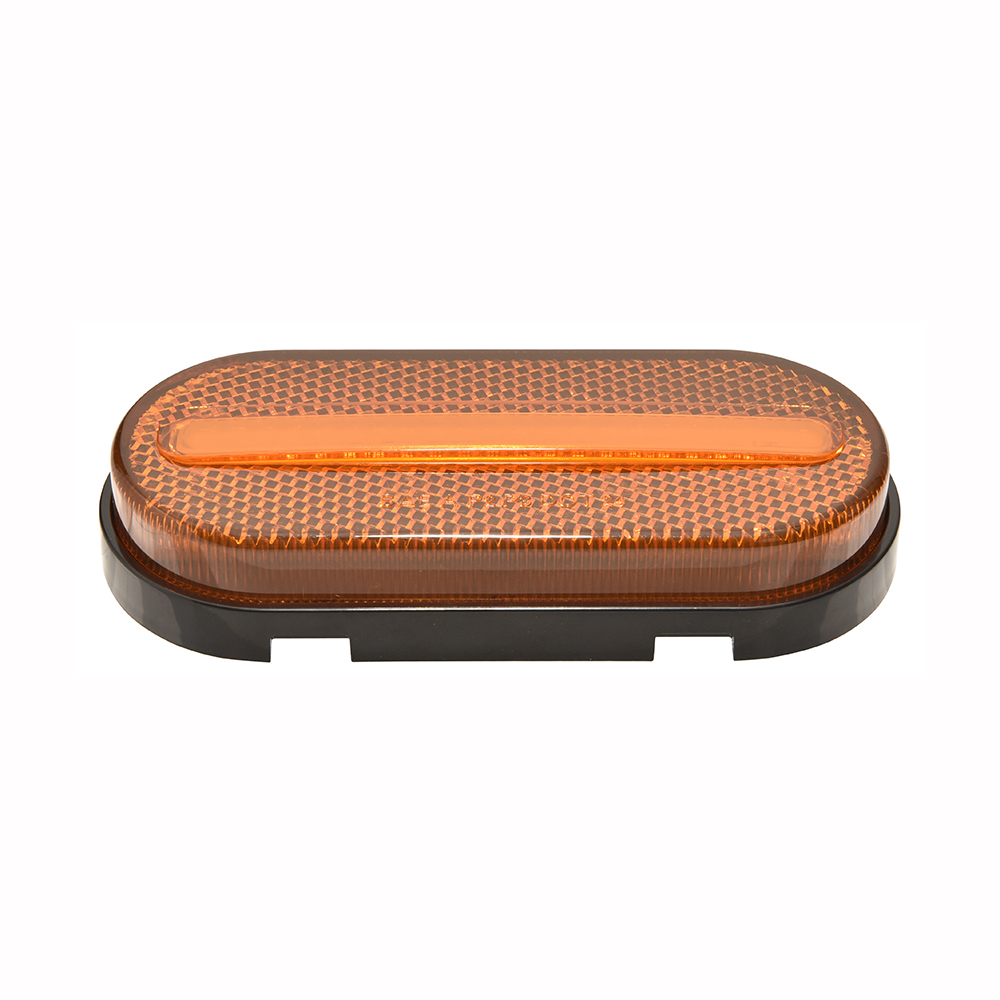

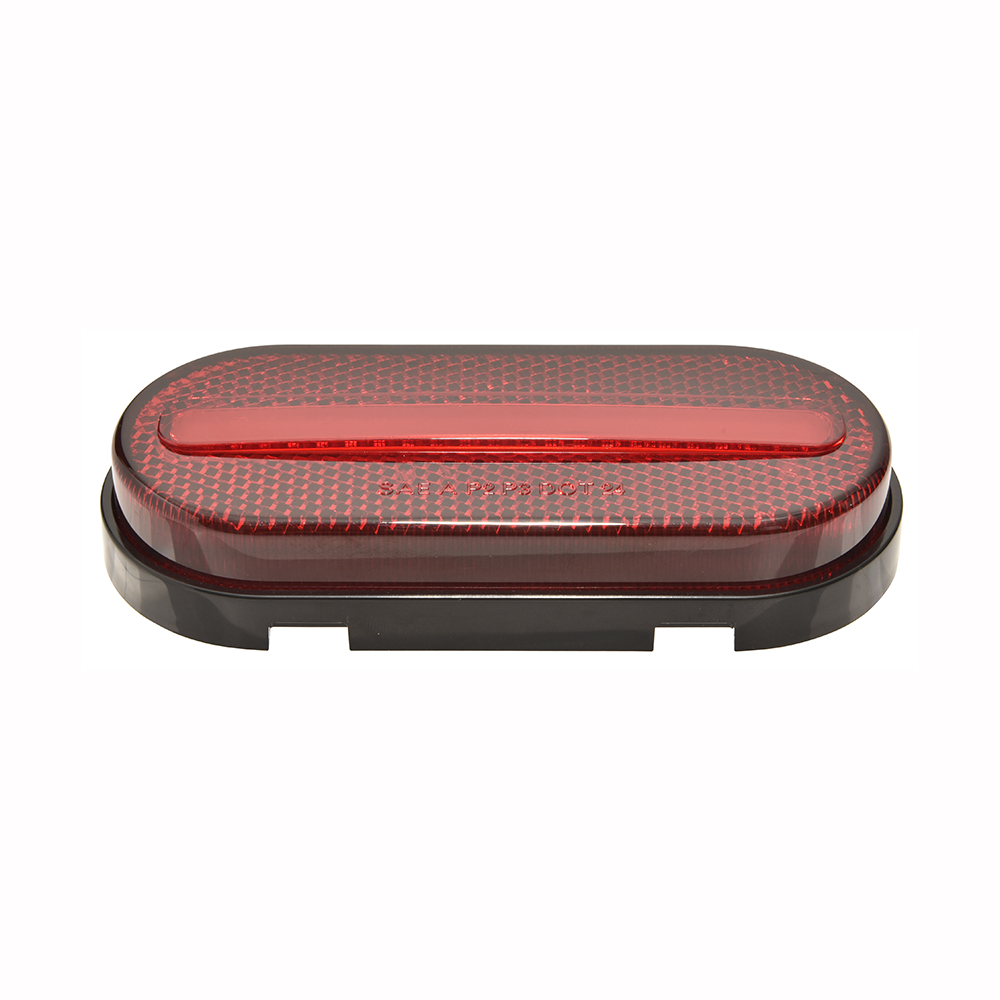

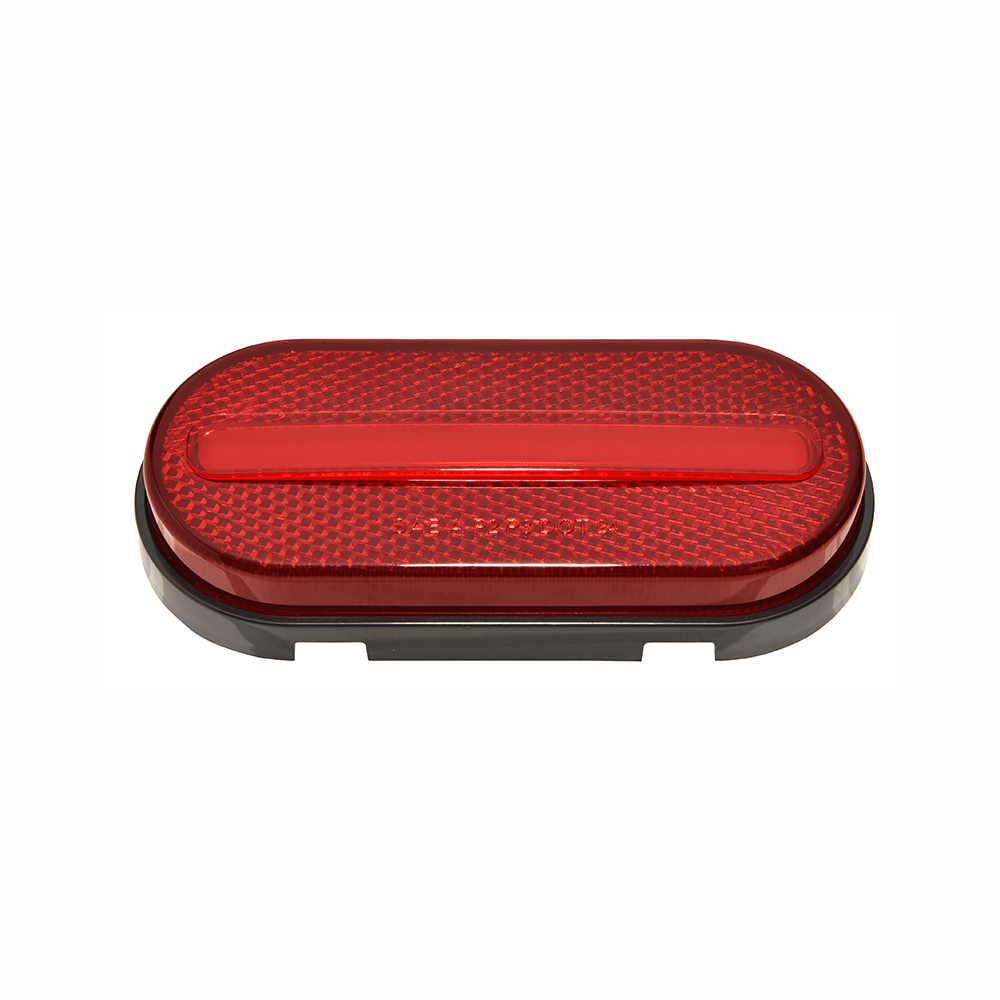

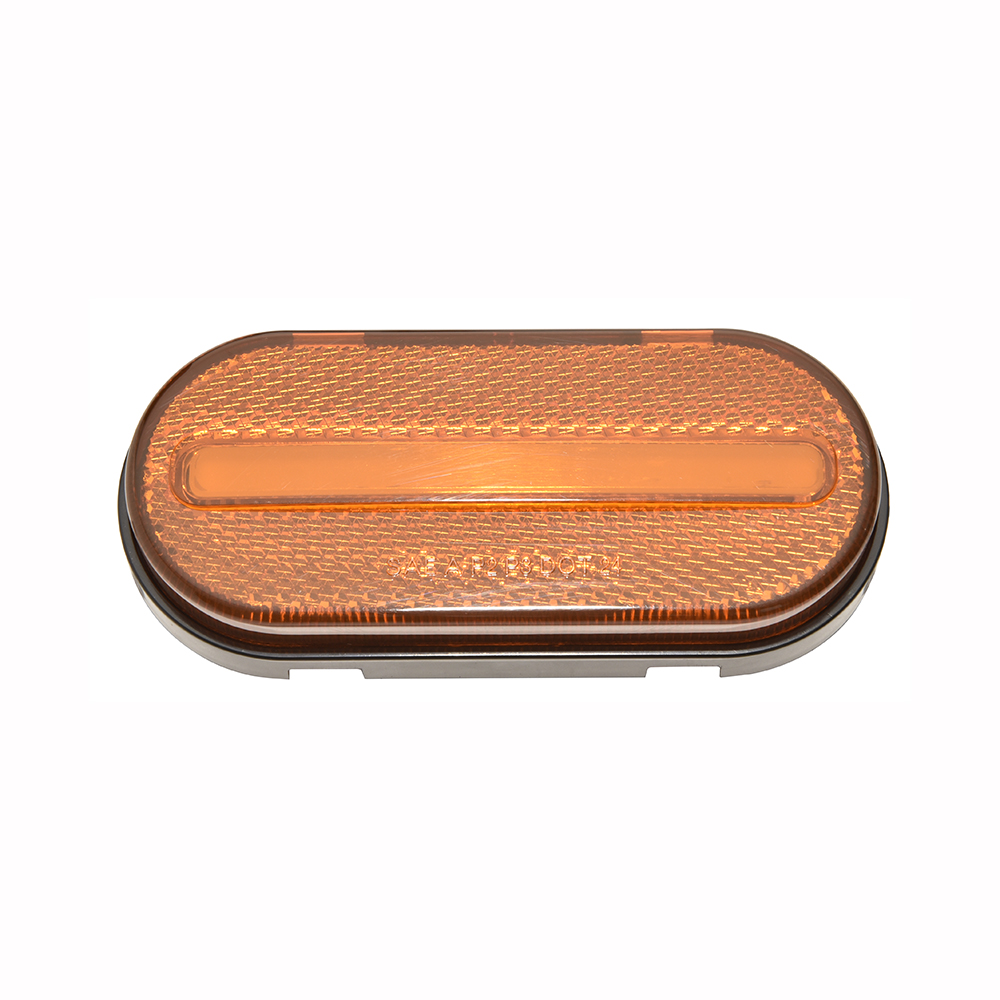

• Oval style with innovative built-in Neon Glow strap in the middle, while the rest lens area with reflex reflector; functions as marker or clearance light
• (12) SMD LEDs, super bright and long lifespan

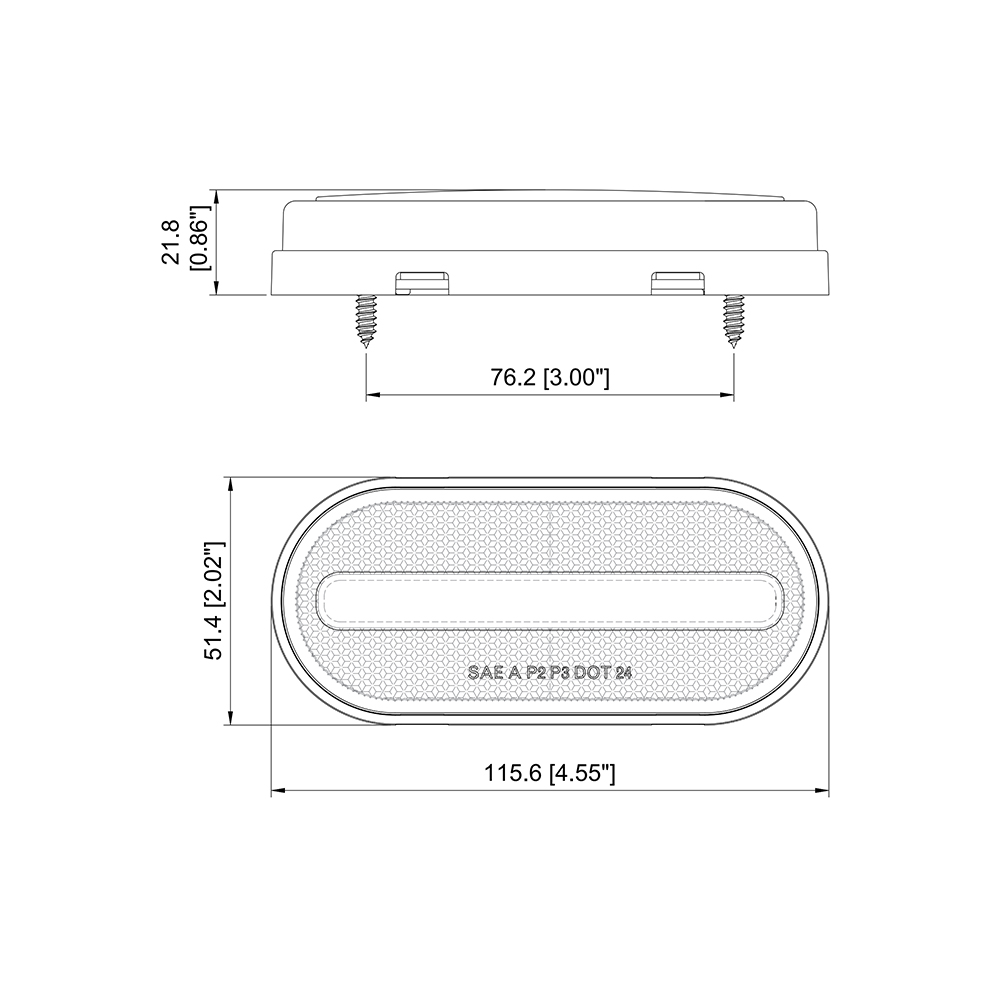

• Surface mount on 3” (76mm) centers
• PC lens and housing for the lamp unit, which is designed to snap on the ABS base; easy for installation
• The lamp unit is ultrasonically welded together and sealed by epoxy to ensure a permanent, weather durable and water proof seal, IP67 rated
• 2 hard wires (positive & ground) with stripped ends directly coming out of the backside
• Meets DOT FMVSS 108/SAE requirements, lens marking: AP2P3
• Available in 12V or 10~30V operation voltage
Part No.
Description
Input Voltage
Lighting Color
LED Count
Current Draw
(A) at 13.8V
207012R
Light Kit Red
12 V
Red
12
0.10 A
207012A
Light Kit Amber
12 V
Amber
12
0.09 A
207012RM
Light Kit Red Multi-volt
12~24 V
Red
12
0.10 A
207012AM
Light Kit Amber Multi-volt
12~24 V
Amber
12
0.09 A
