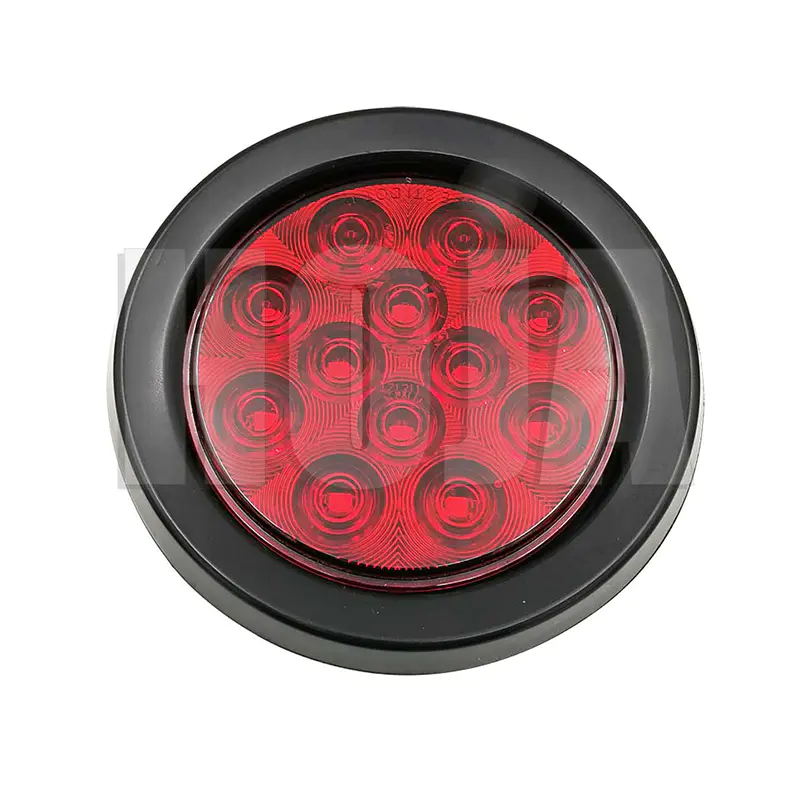

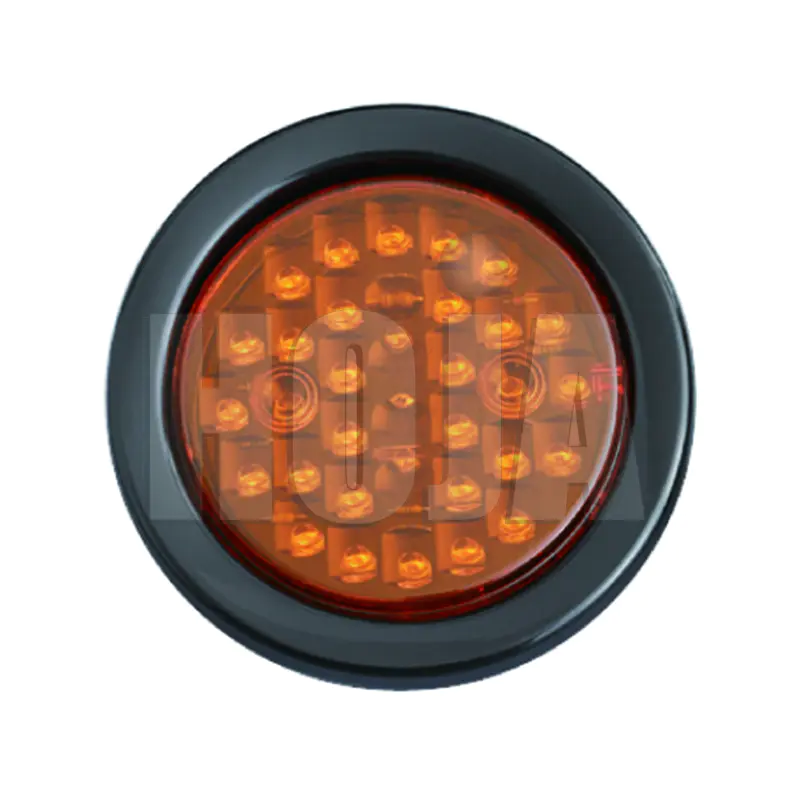

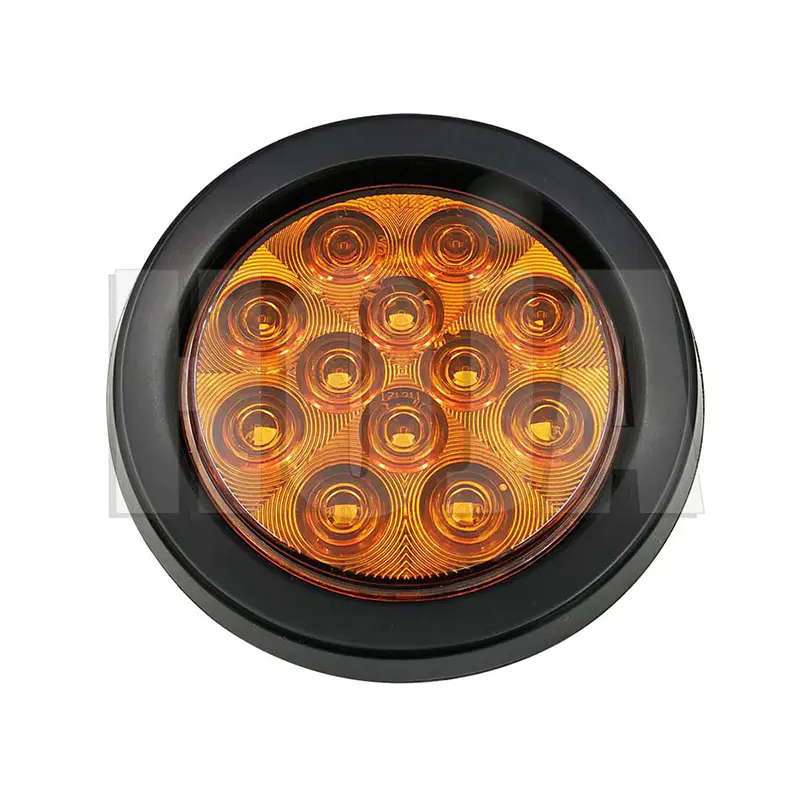

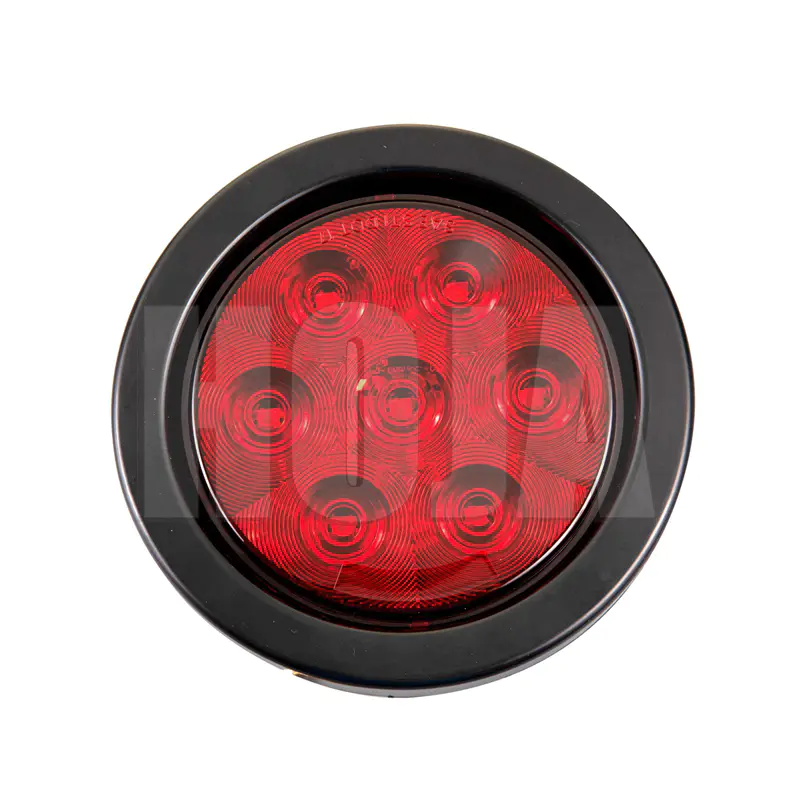

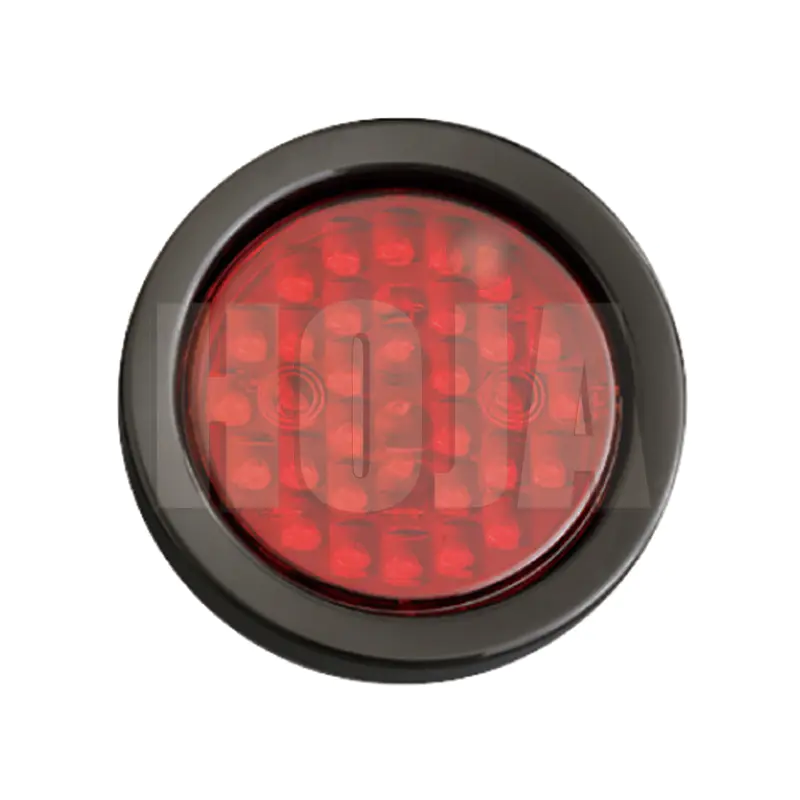

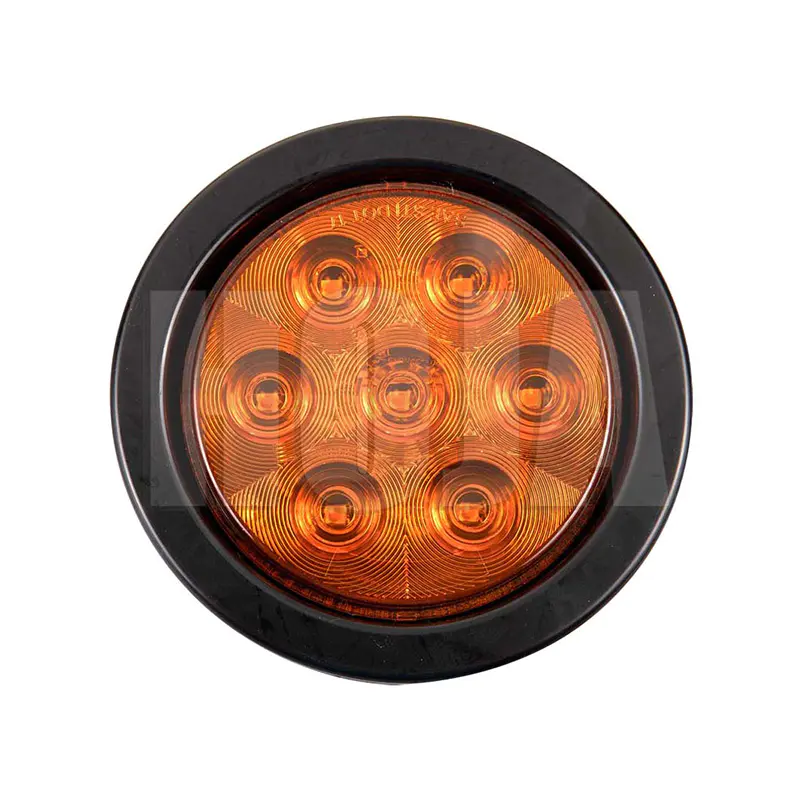

4" Round LED Light, STOP/TURN/TAIL

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 10~30V
Functions:	Stop, Tail, Turn
Mounting Type:	Grommet Mount
Standards:	FMVSS 108/SAE
Lens Marking:	STI
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

• Standard 4" Round STT Light series, PVC grommet mount, interchangeable with most brands

• Versions of 7 LEDs, 12 LEDs or 32 LEDs; super bright SMD LEDs of long life span up to 50,000 hours

• Engineered lens optics

• PC lens and housing welded together to ensure a permanent and water proof seal

• Standard right angle 3-prong plug assembly

• Right angle 3-prong plug assembly, PVC grommet mounting; also available in flange mount version by special order

• Meets DOT FMVSS 108/SAE requirements except Amber versions of 7 LEDs (104207A)

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V by special order only

Part No.	Description	Input Voltage	LED Count	LED Type	Lighting Color	Current Draw (A) at 13.8V
104207R	Grommet Kit Red	12 V	7	SMD	Red	0.02/0.13 A
104207RL	Lamp Only Red	12 V	7	SMD	Red	0.02/0.13 A
104207A	Grommet Kit Amber	12 V	7	SMD	Amber	0.02/0.13 A
104207AL	Lamp Only Amber	12 V	7	SMD	Amber	0.02/0.13 A
104207C	Grommet Kit Clear White	12 V	7	SMD	White	0.30 A
104207CL	Lamp Only Clear White	12 V	7	SMD	White	0.30 A
104112R	Grommet Kit Red	12 V	12	SMD	Red	0.02/0.19 A
104112RL	Lamp Only Red	12 V	12	SMD	Red	0.02/0.19 A
104112A	Grommet Kit Amber	12 V	12	SMD	Amber	0.02/0.19 A
104112AL	Lamp Only Amber	12 V	12	SMD	Amber	0.02/0.19 A
104112C	Grommet Kit Clear White	12 V	12	SMD	White	0.35 A
104112CL	Lamp Only Clear White	12 V	12	SMD	White	0.35 A
104232R	Grommet Kit Red	12 V	32	SMD	Red	0.02/0.31 A
104232RL	Lamp Only Red	12 V	32	SMD	Red	0.02/0.31 A
104232A	Grommet Kit Amber	12 V	32	SMD	Amber	0.02/0.31 A
104232AL	Lamp Only Amber	12 V	32	SMD	Amber	0.02/0.31 A
104232C	Grommet Kit Clear White	12 V	32	SMD	White	0.30 A
104232CL	Lamp Only Clear White	12 V	32	SMD	White	0.30 A
104207RM	Grommet Kit Red Multi-voltage	12~24 V	7	SMD	Red	0.02/0.11 A
104207AM	Grommet Kit Amber Multi-voltage	12~24 V	7	SMD	Amber	0.02/0.11 A
104207CM	Grommet Kit C.W. Multi-voltage	12~24 V	7	SMD	White	0.20 A
104112RM	Grommet Kit Red Multi-voltage	12~24 V	12	SMD	Red	0.02/0.11 A
104112AM	Grommet Kit Amber Multi-voltage	12~24 V	12	SMD	Amber	0.02/0.11 A
104112CM	Grommet Kit C.W. Multi-voltage	12~24 V	12	SMD	White	0.16 A
104232RM	Grommet Kit Red Multi-voltage	12~24 V	32	SMD	Red	0.02/0.22 A
104232AM	Grommet Kit Amber Multi-voltage	12~24 V	32	SMD	Amber	0.02/0.22 A
104232CM	Grommet Kit C.W. Multi-voltage	12~24 V	32	SMD	White	0.21 A
104200G	Standard Grommet only for 4" Round Light
906403P	Standard Right Angle 3-Prong Plug for 4" Round Light
